E-Paper 03.13.2019
Our solid flow meter MF 3000 is designed for flow measurement in metallic pipes from a few kg/h to many t/h. The system is suitable for online measurements of powders, dusts, pellets, and granules from 1 nm up to 2 cm in pneumatic or free fall conditions.
The measurement principle of the MF 3000 is based on the physical Doppler-Effect, whereas the sensor generates a uniform field in the microwave frequency range inside the pipe. These microwaves are being reflected by particles passing through the pipe. Calculation of frequency and amplitude changes allows for accurate determination of solid flow. Non-moving particles like dust accumulation are excluded from the calculation.
The installation is simple and cost effective via a welded branch, through which the sensor is screwed flush to the inside of the pipe. The sensor is connected to a DIN-rail mounted transmitter with 4...20 mA, RS232 and RS485 output. The calibration is easy by using our MF– SMART software and a reference flow value.

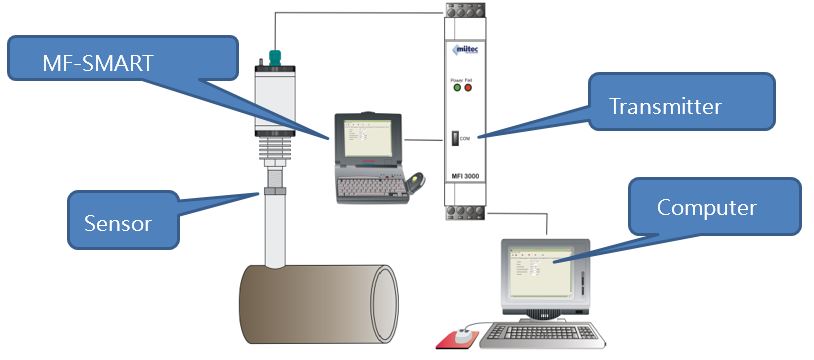

MF3000 Mass Flow Meter System components
Main Benefits
All dust, Powders, granulates, panels, threads, etc. Also sticking or abrasive materials
Animal feed industry, Building materials industry, Cement industry, Chemical industry, Detergent industry, Engineering companies, Food industry, Glass production, Metal production, Pharmaceuticals, Pigment production, Plastic industry, Production of ceramics, Production of rubber goods, Production of textiles, Tobacco industry, Washing powder industry
