Electromechanical Level Measuring System (EE310)

E-Paper 12.18.2020

Electromechanical Level Measuring System

  • Analog output: 0-20 mA/4-20mA.
  • Pulse output: NPN/PNP (10mm/pulse)
  • Relay output (5A/240Vac)x 4: HI, LO alarm or Pulse, reset, fault Alarm, operation indication or Lock alarm output can be programmed.
  • Plumb Buried Protection: System can sense and stop the measurement as the plumb hit by materials and retrieve the wire to prevent the plumb being buried.
  • Four Start Modes: auto start, manual start, intelligent start, and External triggered start.
  • Intelligent Start: Measuring interval is inverse proportional to medium level.
  • Material feeding protection switch: By connecting to feeding equipment, when signal is (ON) to immediately interrupt the measurement action and forcefully return the plumb to reduce the risk of being buried.
  • RS485 MODBUS communication protocol.
  • Freeze Prevention Capability: being able to work normally in cold


  • The result of measurement is not affected by environmental factors as sound waves, dust, static electricity, humidity and dielectric etc.
  • Widely utilized in mining, cement, petrochemical, feeding and power plants.
  • Suitable for different variety of materials as powder, pellet, liquid, and also good for open tanks or sealed tank with no inner pressure inside.

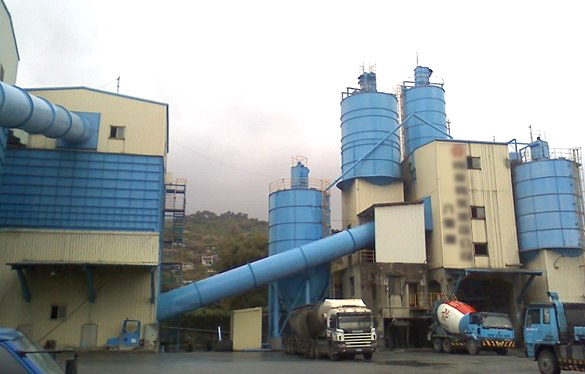

Case Study:

  • Industry: Cement Industry
  • Application:  Ready-mixed concrete (R.M.C), Cement
    Measurement Temporary Storage Tank
  • Model no: EE310-1-00A-20 and Qty: 9 pcs
  • Potential Business opportunity:
    A. The equipment for R.M.C will be upgrade for eighty set, inclusive of EE310*5 pcs , SE110*10 pcs, BAH* 5 pcs
    B. MMS system integrating software
    C. They would like to set up building a wireless network and data on the cloud.
EE310 Case Study
