FineTek - EB5 Series RF Admittance Level Transmitter

E-Paper 10.05.2020

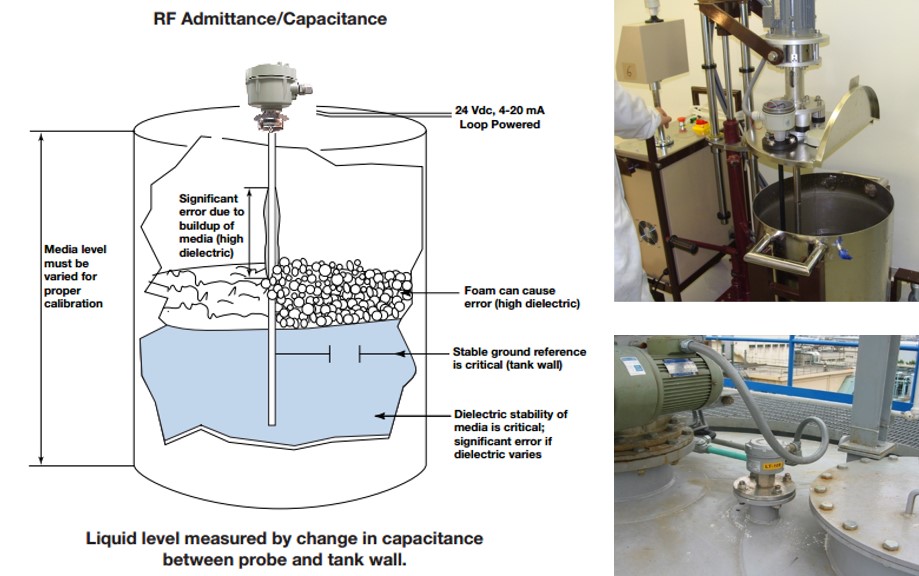

RF Admittance Level Transmitter utilizes the capacitance formed between the sensing probe and the reference probe or the metal vessel wall to calculate the level of the medium inside the vessel according to the capacitance theory that the capacitance and vessel are proportionally increased.




  • 2-wire loop powered 4~20 mA measurement signal
  • Low consumption of power (20mA Max)
  • High accuracy of linearity (< 1% FS or ±0.5pF)
  • Temperature compensation, low temperature effect(±0.2% FS/°C or 0.1pF/°C)
  • Easy calibration (Any 2 points for calibration)
  • No blind distance, ideal for different tanks
  • Suitable for high temperature, high pressure and corrosive environment
  • LCD local display
  • Certification: CE, ATEX, NEPSI, HART and TS.
    EB5 RF Admittance Level Transmitter Application

    Application :
  • Liquid- Oil, petrochemical, water treatment, dyeing and finishing, pharmaceutical (CIP process), electronics, beverages, and food ... etc.
  • Bulk solid- Mining, steel, grain, etc.
  • Powder -Feed, pharmaceutical, chemical, rubber and plastics, food, cement, road machinery, storage ...etc.
  • Conductive & None-conductive
  • Hi-temp (up to 200°C)

    Easy calibration (Any 2 points for calibration) :

Easy calibration
